Quartz watches test equipment

NEW: Improved quality and new design for more comfort! The new third generation flash test: Now with a new comfort touchscreen, new housing and improved quality. HIGHLIGHTS: - Color touchscreen approx. 48 x 36mm - Multifunctional: For quick and easy testing of electronic components and the accuracy of analog quartz watches. - Software update via USB is possible. - Quick testing - without having to open the watch - of the electronic and mechanical components of the watch (by unblocking the gear train) as well as the accuracy of analog quartz watches Safe and precise testing after opening the watch: - Voltage measurement of the battery from 0 to 19.99 V (even under load) - Power consumption of the E. block - power consumption of the plant - Measurement of the coil resistance Scope of delivery: - Measuring device with mains adapter. - 1 pair of fine test probes with cable. - Comprehensive comparison list with details of coil resistances and consumption of quartz movements. Test device for locating a fault in an analog quartz watch that is no longer running as well as Quick test of the electronic components with the following test options: 1. Battery test For all button cells up to a maximum of 3 volts. The batteries are under load (load resistance 1 kΩ) checked, and there is a good / bad indication by means of an LED. 2. Control of the motor impulses Display of the impulses by means of an LED that lights up in the interval of the motor impulses and a "beep" tone. In this way, a statement can be made about the functionality of the electronics in connection with the coil. 3. Motor speed test Unblock the gear train 4. Check accuracy This control is used to check the accuracy of analog quartz watches. 5. Power consumption measurement Measuring range 0 - 19.99 µA 6. Ohm (resistance) measurement 7. Supply voltage 8. Pulse strength (pulse rate) Measurement of the coil resistance (measuring range 0-19.99 kOhm Included: 2 measuring cables with test probes 1 power adapter 1 battery 9 volts

Practical control device for quickly testing analog quartz watches. The acoustic / optical signal indicates whether the IC or the coil are OK. Without a signal, the electronics are defective or the battery is empty. Dimensions: 60 x 105 x 28mm Optimal addition: Horotec watch tester Turbo, reference 250027

Practical control device for the simple checking of the gear train of analog quartz watches. The gear train can be unblocked by pressing the "On" button. In order to let the gear train spin, the button must be held for the desired time. Dimensions: 60 x 105 x 28mm. Optimal addition: Horotec watch tester Pulse, reference 346485

Compact test station for all measurements on analogue and digital quartz watches. Device with integrated microphones and a large backlit LCD graphic display. All measurements, as well as the determination of the measurement times, are carried out automatically. The New Tech Handy II can be used to perform the following measurements on quartz watches: 1. Measurement of accuracy for analogue quartz watches. This test determines the accuracy, taking into account inhibition. 2. Measurement of accuracy of LCD watches. 3. Measurement of accuracy of mechanical watches. 4. Power consumption measurement Measuring the IC and mean total power consumption. For the measurement of the total power consumption, the device determines the correct measurement time corresponding to the pulse period of the stepping motor. The measuring range is between 10 nA and 20 mA. 5. Ohm (resistance) measurement Measurement of the coil resistance or test of coil insulation. The measuring range is between 1 Ohm and 15 MOhm. 6. Battery test Measuring the battery voltage with a resistive load of 2 kOhm and an additional connectible 100 Ohm. The measuring range is between 0 - 5 Volts. 7. Power supply for quartz watches 1.00 to 1.55 V in increments of 0.05 V 2.20 to 3.00 V in increments of 0.10 V

Quick test of analogue quartz watches. As a result of a test of the electronics, Timocheck sends both an acoustic and a visual signal for a functioning quartz watch. In the event of a regular signal (pulse display of the electronics), the IC and the coil are functioning properly. In the event of no signal, the electronics is faulty or the battery is empty. To check the clockwork, the device is equipped with 2 pressure fields for quartz watches with and without a second hand. The quartz watches are subjected to rapidly changing, external magnetic pulses, causing the clockwork to turn faster. This allows you to see quickly whether the clockwork runs continuously or stops intermittently

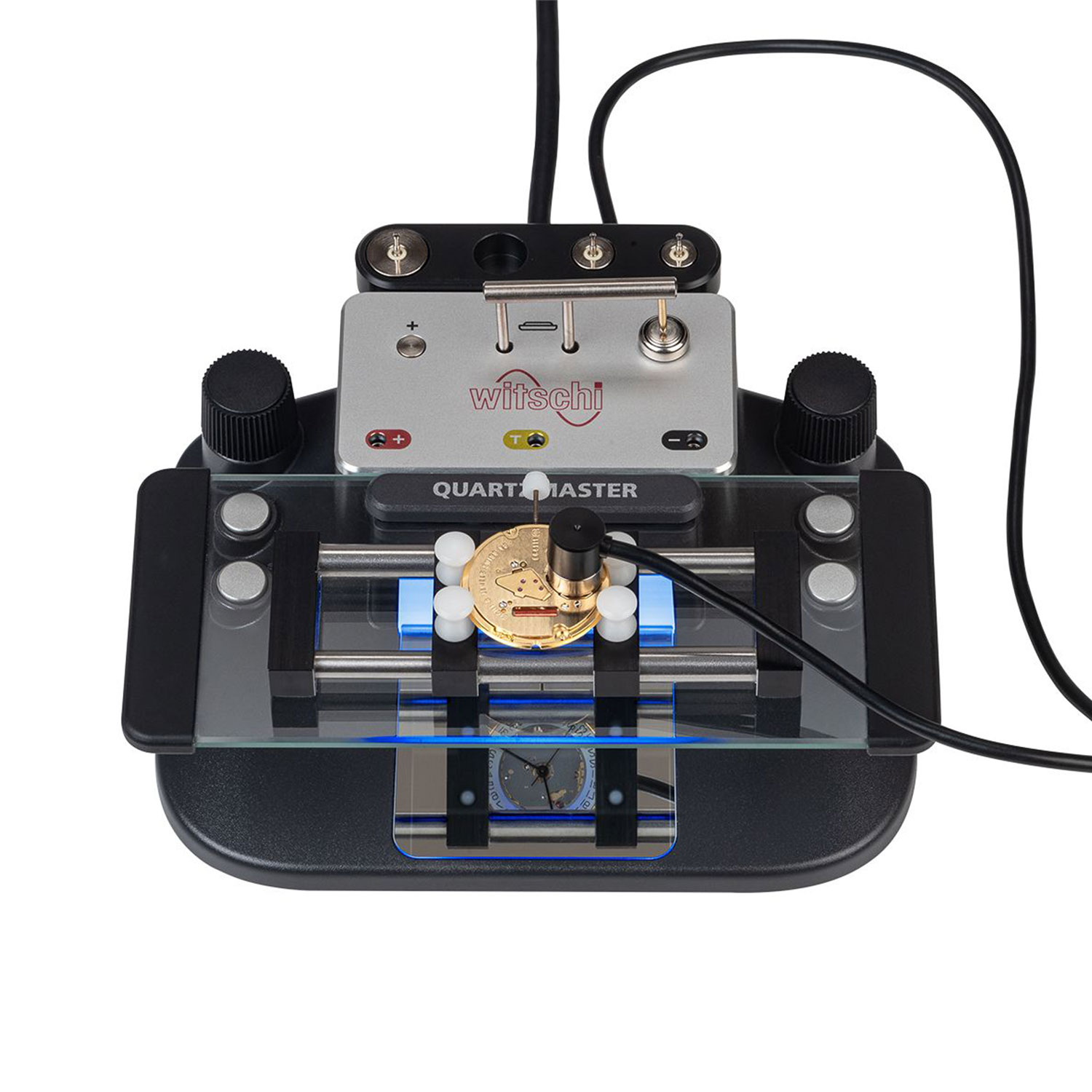

The new QuartzMaster from WITSCHI - the device for measuring open quartz watches The QuartzMaster offers extensive measuring and testing options for the analysis of open quartz watches and the battery. Thanks to its fast and precise measuring processes, it is not only indispensable for service and production, but also an important measuring instrument in the watch laboratory. • User-friendly and compact The compact measuring device is connected to a display device via a USB interface. With the freely configurable buttons and knobs, the three practical contact brackets and the clever clockwork holder, the test is effortless. And with the optional battery dummy, the clock is quickly and easily connected to the measuring device. • Automated measuring programs with WiCoTRACE In the test parameters and measurement results management WiCoTRACE, automated measurement programs can be easily created and centrally managed. The clear application in WiCoTRACE supports an efficient test sequence. • Compact and ergonomic measuring device for open quartz watches • Plug and play thanks to the USB interface • Battery tester with load resistances 100 Ω, 2 kΩ and 2 MΩ • Simple operation through freely configurable rotary knobs and buttons on the device • Suitable for left and right handers • Dedicated yellow bracket for accelerated measurement • Battery dummy for quick connection of the clock to the measuring device (optional) • The lighting for improved readability of the pointer changes color depending on the measurement result and the status of the device • A mirror enables a view of the dial from the working position • Automated measuring programs with WiCoTRACE • Battery measurement • Testing in accelerated mode • Current measurement • Rate deviation with and without inhibition step • Check of the minimum operating voltage and end-of-life voltage (EOL) • Automatic determination of the EOL voltage • Motor pulse analysis (pulse duration and chopping ratio) • WiCoTRACE - Operation: rotary pushbuttons and buttons - Compatible display devices: Windows PC, Windows tablet - Interfaces: 1x USB type A (device type C); 1x connection for battery dummy - Dimensions: 142 x 53 x 104 mm (W x H x D) without contact bracket - Weight: 430 g
